ULTRA 1000 Plus

ULTRA 1000 PLUS IS A HIGH-PERFORMANCE ELEVATOR FOR DESIGN-FOCUSED SPACES. IT BLENDS PREMIUM AESTHETICS AND SMART FUNCTIONALITY TO DELIVER STYLISH TRAVEL AND HIGH RETURNS.
ULTRA 1000 plus

Ultra1000 Plus step into moments of style

01

Increases your returns

Add value to your building with cabins designed along 4 interior trend lines.

02

Underlines your building’s premium

Premium interior options and meaningful controls.

03

Provides a stylish experience

Elaborated functions and features.

Ultra 1000

Increases your
returns

Add value to your building with the trend-based interior, intelligent product design, and smart mechanical setup.

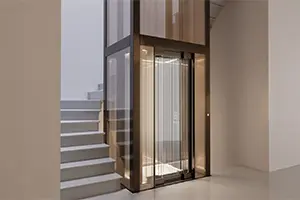

4 interior trends, 8 cabin designs

Inspired by cutting-edge contemporary interior designs, Ultra 1000 Plus provides a premium look to your building. It’s stylish geometric shapes, and vibrant colour palette creates a sense of spaciousness and serenity.

4 interior trends, 8 cabin designs

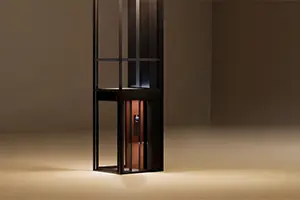

Intelligent product design

Ultra 1000 Plus has been intelligently engineered to ensure optimal utilization of building space, both in the shaft and in the cabin. It comes with MR and MRL options, ACO and ATO door options for further optimization of shaft space, and flush-fitted COPs to add to the cabin space.

Intelligent product design

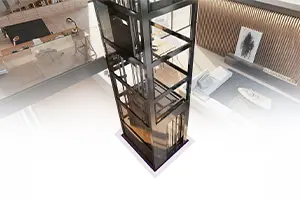

Smart mechanical setup

Ultra 1000 Plus comes with multiple smart components and processes such as bottom suspension, surface mounted fixtures, and safe & efficient installation method that makes it easy to install and get people moving in no time.

Smart mechanical setup

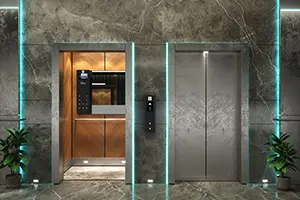

Premium cabin finishes

Ultra 1000 Plus offers premium cabin finishes such as etched finishes, SS finishes, metallic powder-coated finishes with big vision glass door options to add a sense of class and sophistication to your building.

Premium cabin finishes

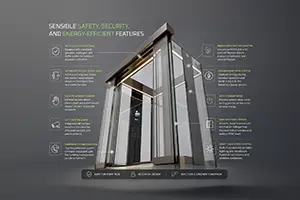

Sensible safety, security, and energy-efficient features

Ultra 1000 Plus offers multiple active and passive safety features such as full-height 2D infrared light curtain, Automatic Rescue Device (ARD), and provision for CCTV camera signal transmission to give its users the highest level of safety & security. It comes with a reliable, compact, and energy-efficient gearless PMS motor.

Sensible safety, security, and energy-efficient features

Ultra 1000 Plus focuses on ambience,
aesthetics, and efficiency to
let users travel in style

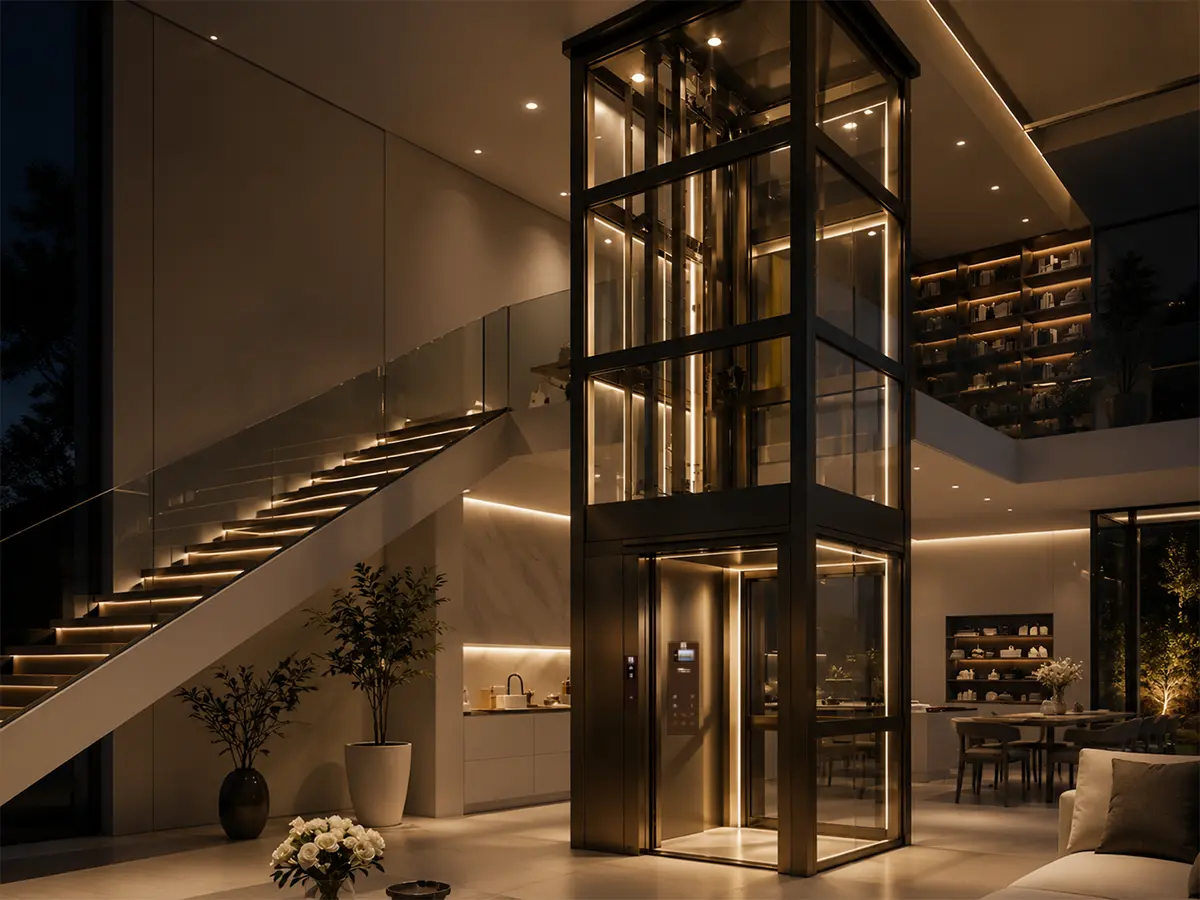

01. Enhanced ride comfort

An optimized suspension system and robust car structure allows for a smoother ride.

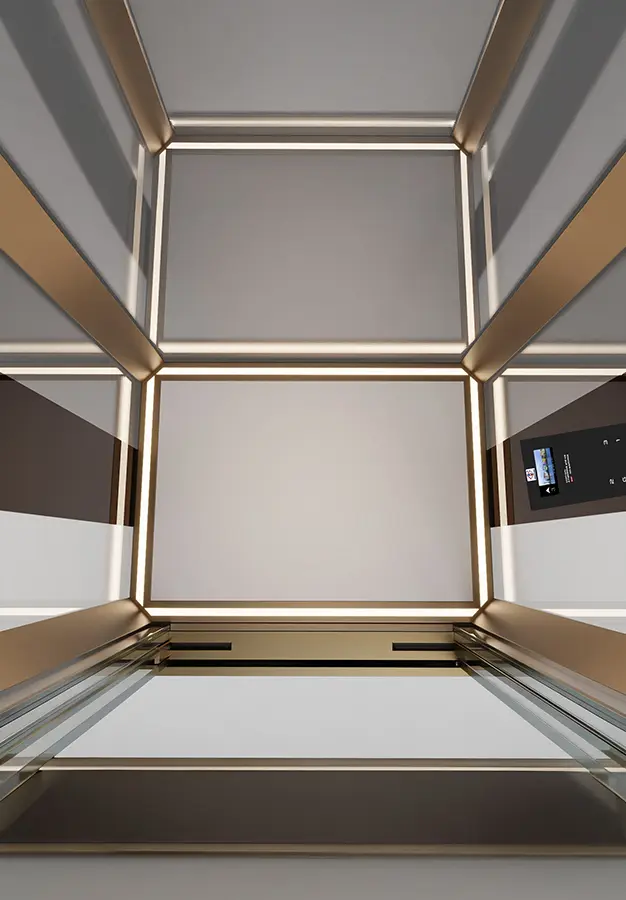

02. Ambience enhancing Features

To enhance user experience, Ultra 1000 Plus comes with the provision of music system wiring.

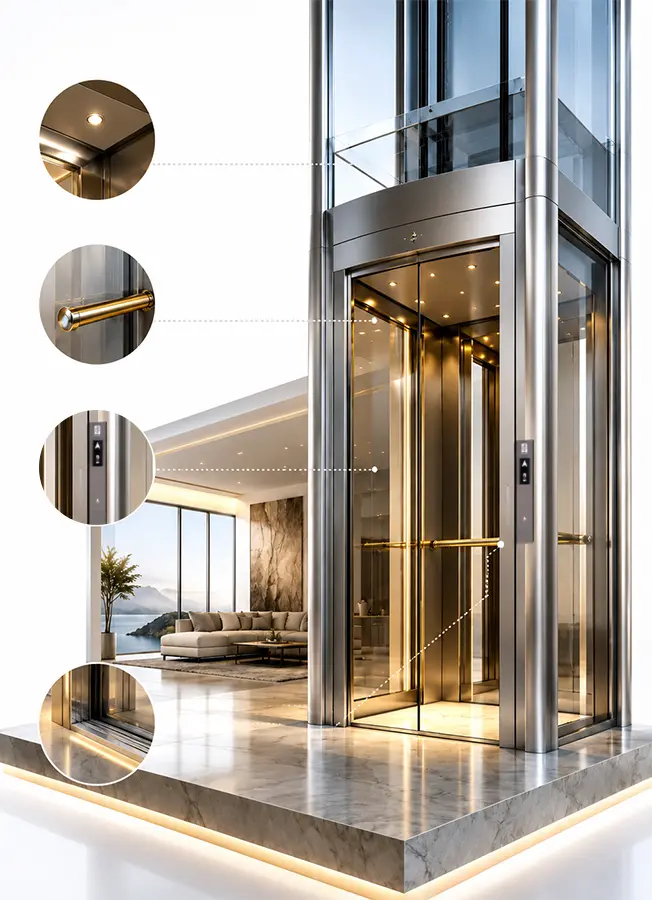

03. Usability enhancing Features

Ultra 1000 Plus offers various optional features suchas voice announcement, car arrival chime, and braille buttons for added convenience.
portfolio-thumb-1
portfolio-thumb-2
portfolio-thumb-3

Alexa Apex Elevators Ultra1000 Plus MR & MRL

GENERAL PLANNING DATA & TECHNICAL PARAMETERS
General Planning Data - Minimum Overhead (OH) mm
CLEAR CAR HEIGHT (CCH) MMOVERHEAD (OH) MM
INTEGRATED CEILINGSUSPENDED CEILINGMRMRL
2100-35003800
2200210036003800
2300220037003800
2400230038003800
2500240039003900
-250040004000
Basic Parameters
Rated Load (kg)340 / 408 / 476 / 544 / 612
Rated Speed (m/s)1
Max. Stops/Landing16 / 16
Max. Travel Height (mm)45000
Min. Pit Depth (PD) (mm)1400
Door TypeACO / ATO
Door Height (mm)2000 / 2100 / 2200
Min. floor to floor height (mm)DH + 600
Machine Room Dimensions (MM)Machine Room Height, MRH = 2200 Machine Room Width, MRW = SW + 500 (Machine Room side extension as per GAD) Machine Room Depth, MRD = SD
Structural Limits for Lift SW & SD
SHAFT HEIGHT (SH) (MM)PERMITTED DEVIATION (MM)
<=300000~+25
>30000 <=600000~+35
Planning Dimensions
RATED LOAD (KG)PAX CAPACITYDOOR TYPEDOOR WIDTH (DW) (MM)CAR SIZE (CW X CD) (MM)SHAFT SIZE (MIN) (SW X SD) (MM)
3405ACO700850 x 10001600 x 1385
3405ATO700850 x 10001475 x 1425
3405ACO700850 x 11001600 x 1435
3405ATO700850 x 11001475 x 1475
4086ACO700875 x 11501600 x 1480
4086ATO700875 x 11501500 x 1500**
4086ACO7001000 x 10001635 x 1385
4767ACO8001000 x 10001745 x 1385
4767ATO8001000 x 10001625 x 1425
4767ACO7001000 x 11001625 x 1435
4767ATO8001000 x 11001625 x 1475
4767ACO8001100 x 11001740 x 1435
4767ATO8001100 x 11001725 x 1475
5448ACO700950 x 14001600 x 1730
5448ATO800950 x 14001575 x 1770
5448ACO8001100 x 12001740 x 1530
5448ATO8001100 x 12001725 x 1570
5448ACO7001100 x 13001725 x 1630
5448ACO8001100 x 13001740 x 1630
5448ATO8001100 x 13001725 x 1670
5448ACO8001150 x 11501795 x 1480
5448ACO8001300 x 11001925 x 1435
5448ACO8001100 x 14001740 x 1730
5448ATO8001100 x 14001725 x 1770

For Big vision glass door, additional shaft width of 30 mm and shaft depth of 10 mm is required for ACO doors & additional shaft depth of 40 mm is required for ATO doors.

**For TH > 21m, Min. SW x SD = 1500 x 1520 required.
