ULTRA 300

INCORPORATES PROVEN AND RELIABLE HYDRAULIC TECHNOLOGY AND OFFERS COMFORT AND PERFORMANCE

Alexa Apex Elevators Ultra 300

TECHNICAL DATA

Homelift

Compliance to directives	Machine directive 2015 / ISO-9001
Duty load	Up to 400 kg
Speed	Up to 0.3 m/s
Maximum travel	Up to 13.5 m / 13500 mm
Number of stops	4 stops
Number of doors	8 doors
Entrance	Single, Opposite, Adjacent (not on the same floor)
Operation	Hold-to-run (IN) and Automatic (IN)
Drive	Hydraulic control unit with indirect action by chains and steel rope
Power supply	Single phase 230 V, 50–60 Hz
Headroom	Min. 2350 mm in existing shaft depending on shaft type and landing doors
Pit	120 mm (no pit is required when there is a threshold/ramp)

Platform

Column height	2100 mm
Control panel	23.6” touch screen display
Safety	Emergency operation in case of power failure, Electrical locks on landing doors, Anti-crush system with sensors on platform edges, Overload sensor, Emergency light, Alarm, Telephone

Landing Doors

Automatic landing doors	Full glass double panel sliding and manual swing door (glass colour to be selected)
Door width	Min. 600 mm – Max. 900 mm
Door height	2000 mm

Shaft

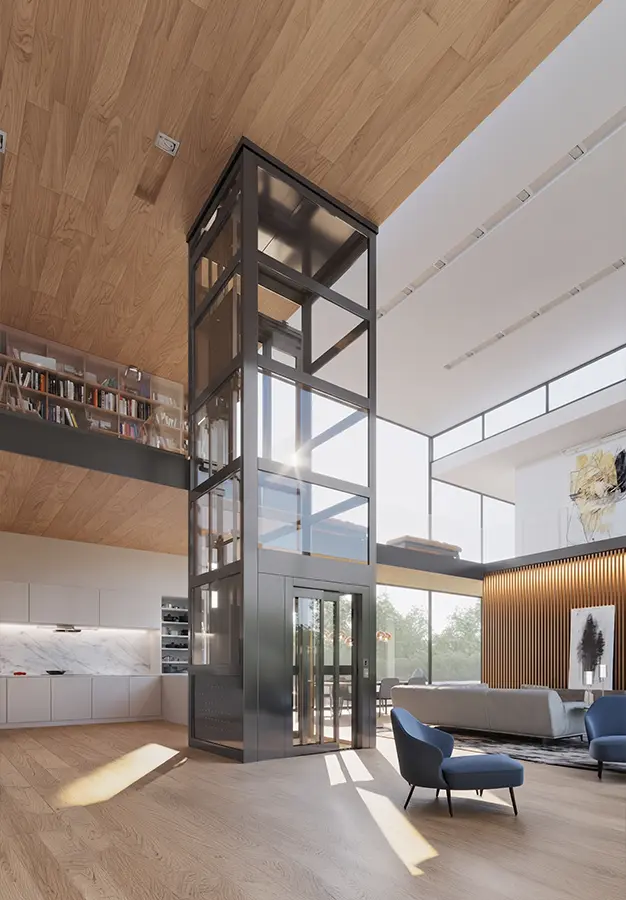

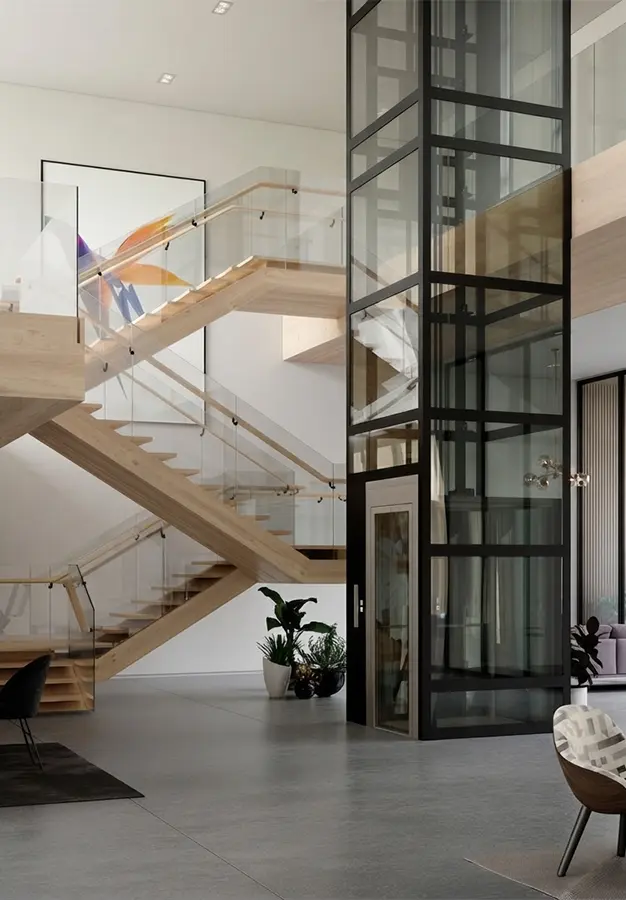

Panoramic shaft	Painted metal with glass options
Shaft cladding	Interior flush glass / Blind metal panels
Mechanics side cladding	Painted metal panels

Dimensions (mm)

Side mechanics (width × depth)

Platform	Clear Space	Doors
600×800	900×900	600×2000
800×800	1100×900	700×2000
1000×800	1300×900	900×2000
800×1200	1100×1300	700×2000
1000×1000	1300×1100	900×2000
1000×1200	1300×1300	900×2000
1000×1300	1300×1400	900×2000

Back mechanics (width × depth)

Platform	Clear Space	Doors
800×600	900×900	600×2000
800×800	900×1100	600×2000
800×1000	900×1300	600×2000
1200×800	1300×1100	900×2000
1000×1000	1100×1300	800×2000
1200×1000	1300×1300	900×2000
1300×1000	1400×1300	900×2000

Ultra 300 Plus delivers
comfort, reliability, and
efficient vertical mobility

01. Compact & Space Efficient

Ultra 300 Plus is designed to maximize usable space while fitting seamlessly into residential and low-rise commercial buildings.

02. Smooth & Quiet Operation

Advanced drive technology and precision engineering ensure a quiet, comfortable, and vibration-free ride for every passenger.

03. Reliable & Energy Efficient

Built with high-quality components, Ultra 300 Plus delivers dependable performance while minimizing energy consumption and maintenance costs.
