ULTRA 400

INCORPORATES INNOVATIVE MOTOR TECHNOLOGY FOR LUXURIOUS LIVING
ULTRA 400

Alexa Apex Elevators Ultra 400

TECHNICAL DATA
Homelift
Compliance to directivesMachine directive 2015 / ISO-9001
Duty loadUp to 400 kg
SpeedUp to 0.4 m/s
Maximum travelUp to 18 m / 18000 mm
Number of stopsUp to 6
EntranceSingle, Opposite, Adjacent (not on same floor)
OperationHold-to-run (IN) and Automatic (IN)
DriveBrushless electric motor with counterweight
Power supplySingle phase 230 V, 50–60 Hz
HeadroomMin. 2800 mm existing shaft / 3000 mm own shaft
PitMin. 150 mm. No pit required for threshold/ramp. Can be placed directly on floor with 15 cm step
Platform
Column height2100 mm
Control panel23.6” touch screen display
SafetyEmergency operation on power failure, Safety gear, Double motor brake, Electrical locks, Overspeed governor, Anti-crush sensors, Overload sensor, Emergency light, Alarm & Telephone
Landing Doors
Automatic landing doorsFull glass double panel sliding doors
Door widthMin. 600 mm – Max. 900 mm
Door height2000 mm
Shaft
Panoramic shaftPainted metal with glass options
Shaft claddingInterior flush glass / Blind metal panels
Mechanics side claddingPainted metal panels
Dimensions (mm)
Side mechanics (width × depth)
PlatformClear SpaceDoors
1000×8001300×900900×2000
800×12001100×1300700×2000
1000×10001300×1100900×2000
1000×12001300×1300900×2000
1000×13001300×1400900×2000
Back mechanics (width × depth)
PlatformClear SpaceDoors
800×1000900×1300600×2000
1200×8001300×1100900×2000
1000×10001100×1300800×2000
1200×10001300×1300900×2000
1300×10001400×1300900×2000
Note - Additional 200mm required for shaft

Ultra 400 Plus combines
performance, comfort, and
advanced safety features

01. Smooth & Reliable Performance

Ultra 400 Plus is engineered to deliver smooth, safe, and dependable elevator performance for residential and commercial buildings.

02. Modern Design & Comfort

Featuring elegant interiors, energy-efficient lighting, and premium finishes, Ultra 400 Plus enhances the overall passenger experience.

03. Advanced Safety Features

Equipped with intelligent safety systems, emergency rescue functionality, and user-friendly controls to ensure secure and convenient operation.

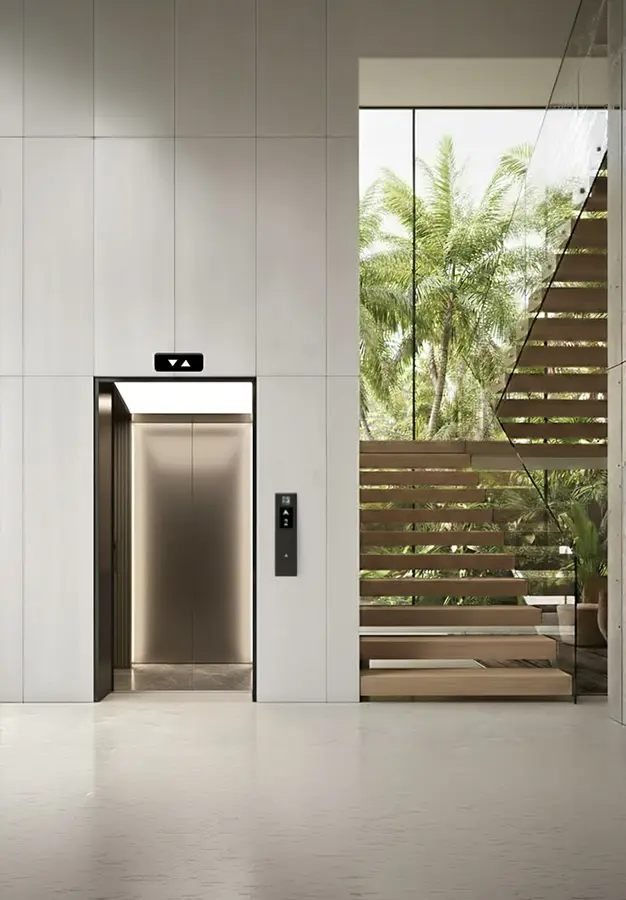

portfolio-thumb-2

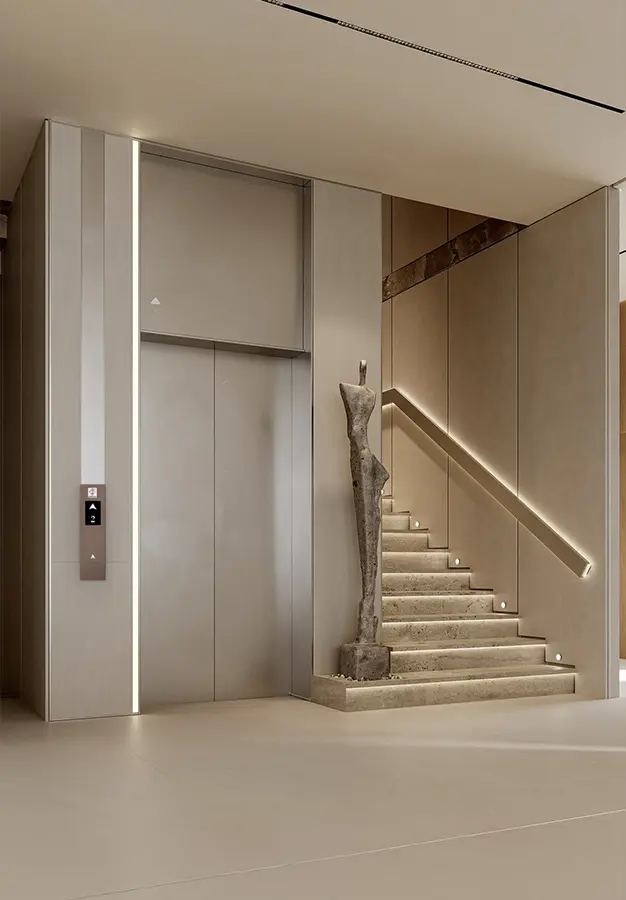

portfolio-thumb-3
ENGINEERED WITH CARE

Experience Best Design
Crafted with Excellence.

Upgrade to premium mobility with Alexa Apex. Our home lifts adapt perfectly to your needs—offering energy-efficient, silent rides with no pit or machine room required.
